Quarter Bridge Demonstration Unit

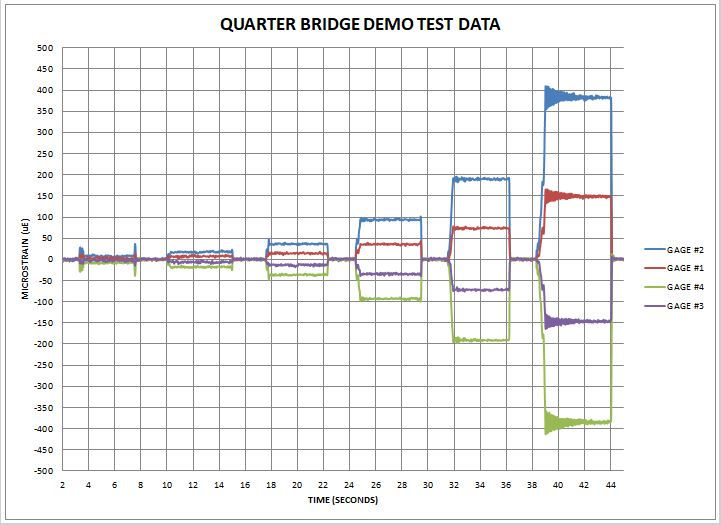

This assembly has 4 strain gages that can be measured individually, or connected together to form a full Wheatstone Bridge.  The simple bar design allows one to easily calculate (or use Finite Element Analysis) to determine the expected strain values at the gage locations.  Its ideal for students or hobbyists who want to learn more about strain gages, material science and testing!

*Precision calibration weights, full-bridge completion adapters and data acquisition system not included.
